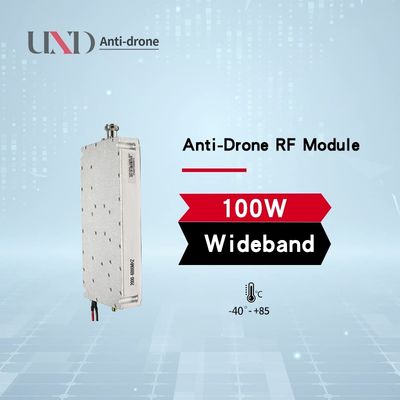

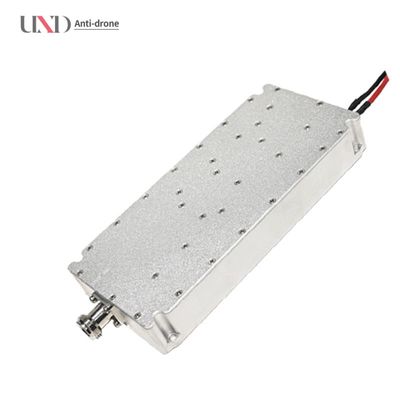

Customizable 700-1000MHz 100W GaN RF Power Amplifier with Digital Modulation for Anti UAV Suppressing
ติดต่อฉันเพื่อตัวอย่างฟรีและคูปอง
Whatsapp:0086 18588475571
วีแชท: 0086 18588475571
สกายเป้: sales10@aixton.com
หากคุณมีปัญหา เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
| พิมพ์ | โมดูล RF | ชื่อ | ต่อต้าน เครื่องขยายสัญญาณ RF โมดูล FPV |
|---|---|---|---|
| ความถี่ | 700-1000MHz (ปรับแต่งได้) | แรงดันไฟฟ้า | 32V |
| พลัง | 100W | ขนาด | 170*77*24.5มม. |
| มิติ | 156.5*64.7*24.5 มม. (ไม่รวมอินเทอร์เฟซ) | น้ำหนัก | 260g |
| เน้น | 100W GaN anti-drone module,700-1000MHz FPV suppressor,digital modulation anti-UAV module |
||
รายละเอียดสินค้า
Customized 700-1000MHz 100W GaN Module
Product Specifications
| Model Number | 700-1000MHz |
|---|---|
| Type | RF Module |
| Application | Anti UAV Module |
| Frequency | 700-1000MHz (Customizable) |
| Power | 100W |
| Voltage | 24-32V |
| Weight | 260g |
| Max Gain | 50dBm |
| Dimension | 156.5*64.7*24.5mm (excluding interface) |
Product Description
The traversing machine countermeasures digital modulation power amplifier module is a complete solution that includes a countermeasure signal source and power amplifier. It can be used directly after connecting to an antenna.
This module features an FPGA logic chip as the main controller, combined with the excellent frequency stability of a frequency-locked VCO to create an advanced anti-drone digital modulation signal with integrated power amplification.
The digital modulation signal is generated internally by the FPGA, modulated on the carrier with the VCO as the oscillation frequency, and emitted through the countermeasures process of the antenna. The module uses a 50Ω SMA radio frequency interface output for easy connection to N interface power amplifier modules.
Frequently Asked Questions
1. How long is the production lead time?
The production lead time varies depending on the product and order quantity. Generally, it takes around 7-15 days after receiving the deposit. Please contact us for more accurate information based on your order.
2. Can I customize the product?
Yes, power and frequency band can be customized according to your needs. Please contact us with your specific requirements.
3. What is your payment term?
We accept various payment methods, including T/T (Telegraphic Transfer), PayPal, and Alibaba Trade Assurance. Payment terms are typically 30% deposit and 70% balance before shipment.
4. How do you ensure product quality?
We have a strict quality control process, including raw material inspection, in-production checks, and final quality inspections before shipment.
5. What shipping methods are available?
We offer multiple shipping options, including sea freight, air freight, and express courier (DHL, FedEx, UPS, etc.). We will recommend the most suitable method based on your order quantity and destination.
6. Can I track my order?
Yes, we will provide you with a tracking number once your order is shipped. You can use this number to track your order through the carrier's website.
7. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including technical assistance and warranty services. Please contact our customer service team for any issues related to your order.
